Features
2 Lines
2 lines, 2 SIP accounts, up to 2 call appearances
TLS and SRTP
TLS and SRTP security encryption technology to protect calls and accounts
3 Way
3-way audio conferencing for easy conference calls
Electronic Hook Switch
Electronic Hook Switch (EHS) support for Plantronics headsets
Automated provision
Automated provisioning options include TR-069 and XML config files
HD audio
Full-duplex speakerphone with HD audio to maximize audio quality and clarity
Zero Config
Use with Grandstream’s UCM series of IP PBXs for Zero Config provisioning
Power
The GXP1625 includes built-in PoE to power the device and give it a network connection
Technical Data
Product Highlights

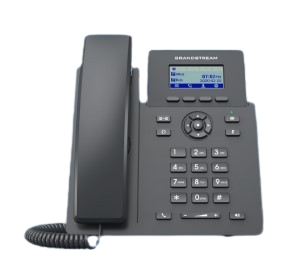

Part of the GRP series of Carrier-Grade IP Phones, the GRP2601 is an essential 2-line model designed with
zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite
of next-generation features including 5-way voice conferencing to maximize productivity, integrated PoE
(GRP2601P), EHS support for Plantronics, Jabra, and Sennheiser headsets and multi-language support. The GRP
series includes carrier-grade security features to provide enterprise-level security, including secure boot, dual
firmware images and encrypted data storage. For cloud provisioning and centralized management, the GRP2601
is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to
configure, provision, manage and monitor deployments of Grandstream endpoints. Built for the basic needs
of on-site or remote desktop workers and designed for easy deployment by enterprises, service providers and
other high-volume markets, the GRP2601 offers an easy-to-use and easy-to-deploy voice endpoint.
|
Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR069, SNMP, 802.1x, TLS, SRTP, IPv6 |
|
Network Interfaces |
Dual switched auto-negotiation 10/100 Mbps Ethernet ports, integrated PoE (GRP2601P only) |
|
Graphic Display |
132 x 48 (2.41’’) LCD display |
|
Feature Keys |
4 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 8 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER,HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL- |
|
Voice Codecs and Capabilities |
Support for G.729A/B, G.711µ/a-law, G.726, G.722(wide-band), G.723,iLBC, OPUS, in- band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB |
|
Telephony Features |
Hold, transfer, forward, 5-way conference, call park, call pickup, downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over |
|
Auxiliary Ports |
RJ9 headset jack (allowing EHS with Plantronics & Jabra &Sennheiser headsets) |
|
Base Stand |
Yes, 1 angle position available (45°), Wall Mountable (*wall mount sold separately) |
|
QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
|
Security |
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot |
|
Multi-language |
English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more |
|
Upgrade/Provisioning |
Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file |
|
Power & Green Energy Efficiency |
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA;PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2601P Only) |
|
Temperature and Humidity |
Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% Non-condensing |
|
Package Content |
GRP2601/2601P phone, handset with cord, base stand, universal power supply (GRP2601 only), network cable, Quick Installation Guide |
|
Physical |
Dimension: 208mm (L) x 180mm (W) x 63.4mm (H) (with handset) Unit weight:650g; Package weight:810g (860g for GRP2601) |
|
Compliance |
FCC: Part 15 Class B; FCC Part 68 HAC; CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; RCM: AS/NZS CISPR32; AS/NZS 62368.1; AS/CA S004; IC: ICES-003; CS-03; |
|
